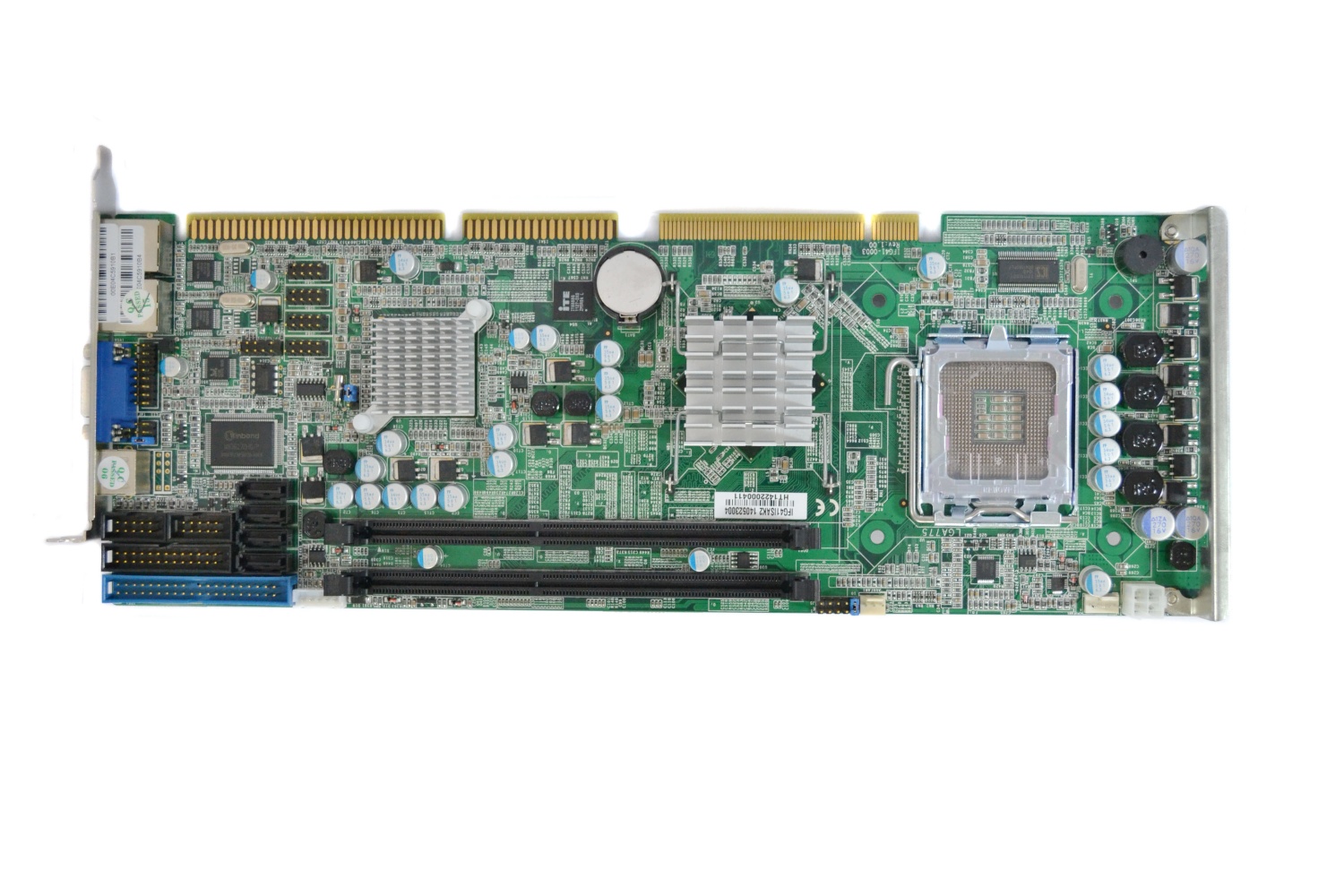

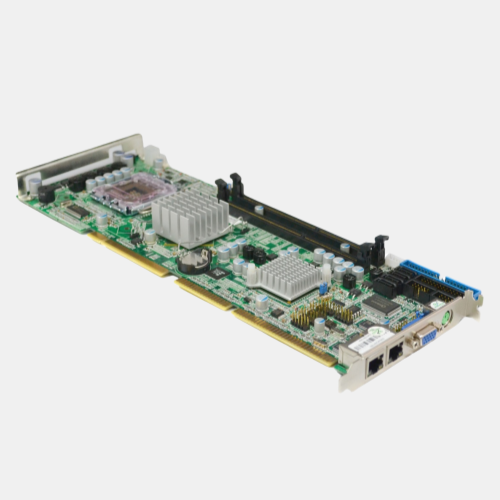

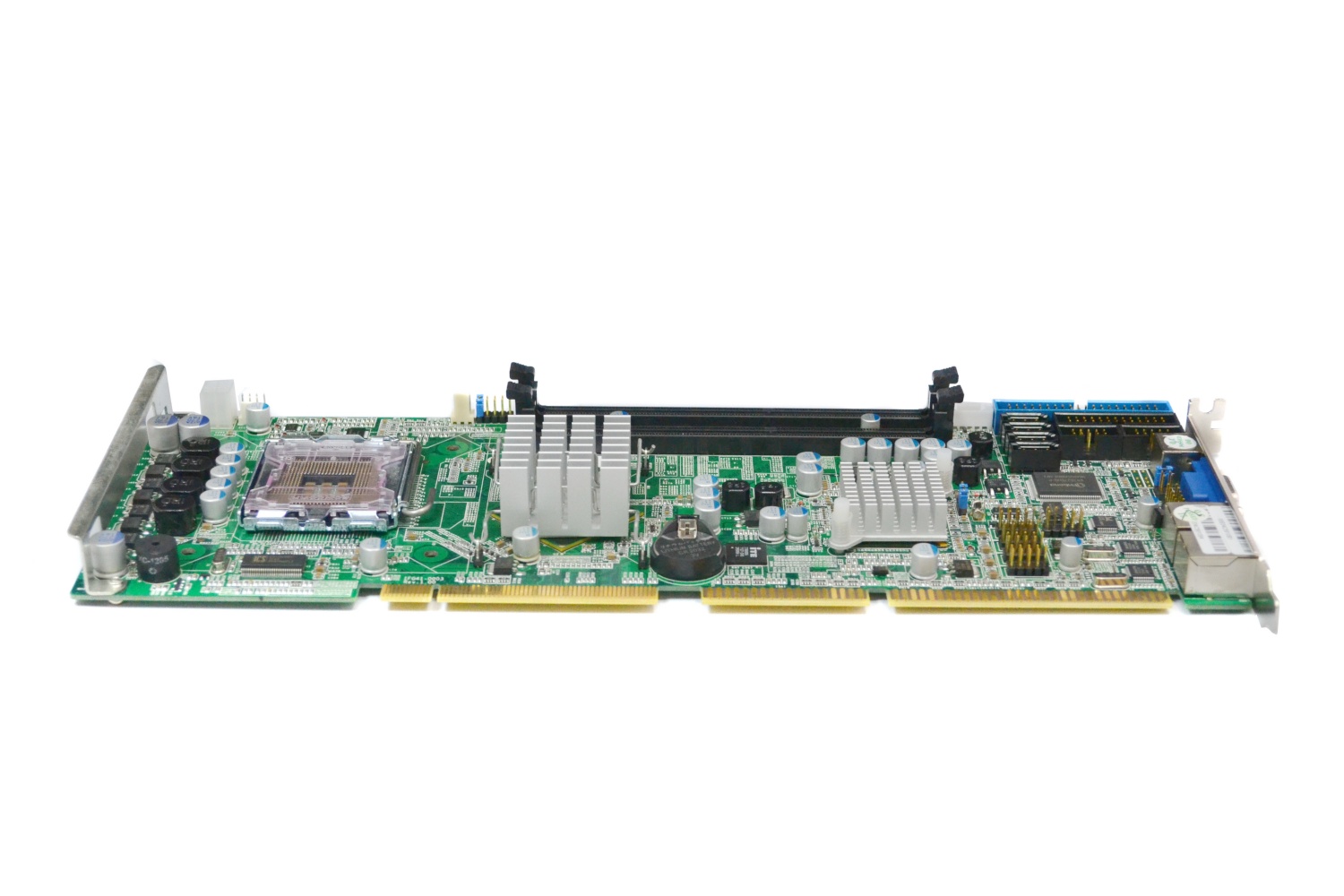

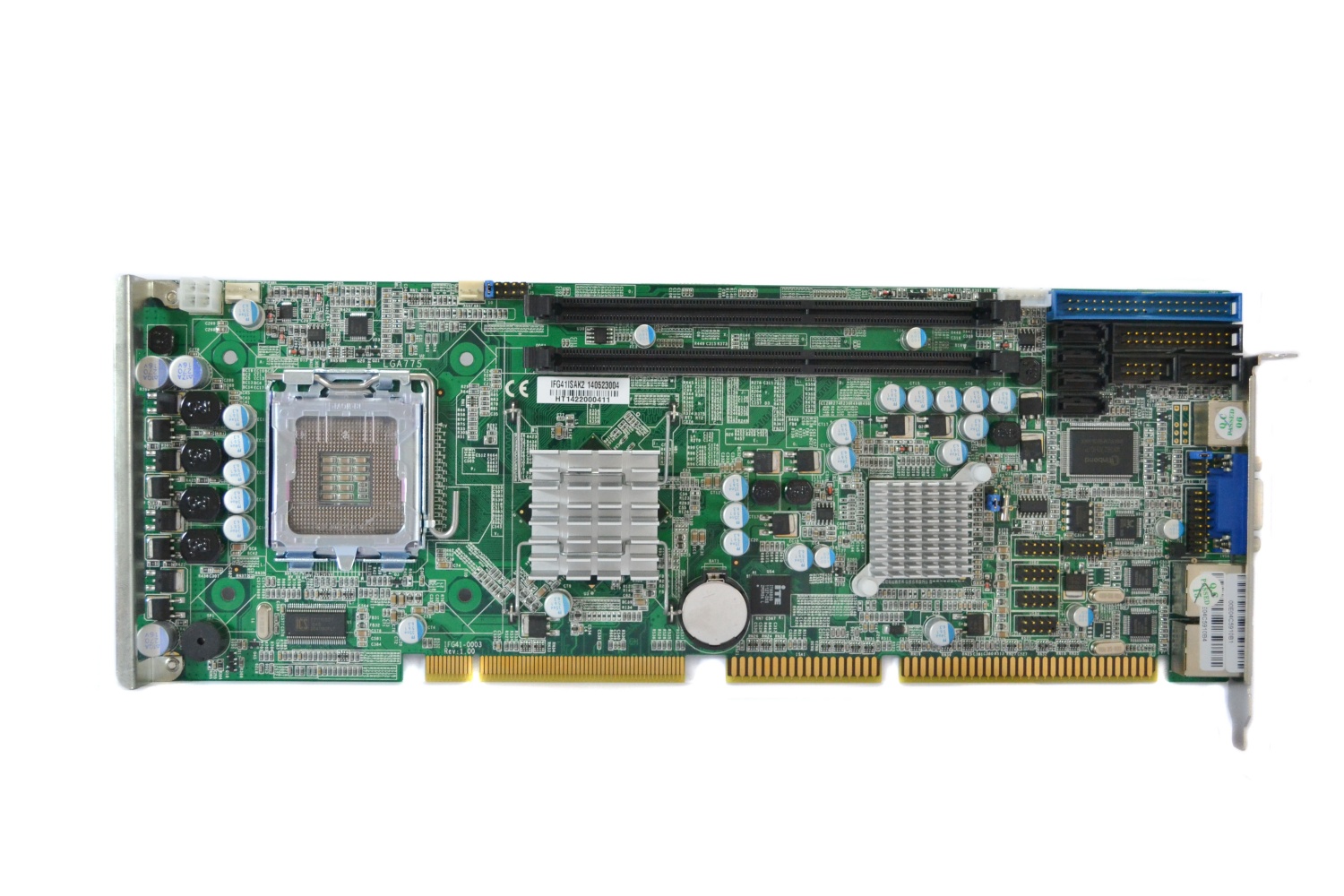

Product Introduction：

IFG41 series motherboards use the IntelG41+ICH7R chipset, comply with the PICMG1.0 bus specification, support the IntelSocket775 CPU, and can support Pentium HT, Core2 Duo, and Core2 Quad processors. They can expand with 4 PCI and 8 ISA expansion slots. They have the best cost performance and long delivery cycle and are widely used in process control, industrial automation, inspection and testing, and other fields.

Detailed parameters：

Model: IFG41ISA
Processor: Intel Socket775 CPU, supports Pentium HT, Core2 Duo, Core 2 Quad processors.
Chipset: Intel G41+ICH7R
Memory: 2 240-pin DRI slots, memory can support up to 4GB
Display interface: 1 VGA interface
Audio: supports 1*MIC-in, 1*Line-out
LAN: 2 Gigabit network cards (RTL8111DL)
Storage interface: 1 IDE (supports UltraDMA/33/66/100MB/Sec), 4 SATA interfaces, supports RAID function
Serial port: 2 RS232 serial ports, of which C0M2 can support RS232/422/485LPT 1
USB: 8 USB2.0, PS2 1 PS2 interface, supports PS2KB/MS
The expansion bus complies with PICMG1.0 specification, provides PCI, ISA expansion motherboard supports up to 12 PCI slots (requires matching baseboard) Motherboard supports baseboard expansion of multiple PCI slots (requires matching baseboard) Motherboard supports ISA
Adapter chip: ITE8888
Watchdog: 255 levels, programmable seconds/minutes, timeout interrupt or system reset power supply supports ATX power management mode, supports automatic power on when AC is powered on
Dimensions: 338mm (L) x122mm (W)
Working environment: -20~60℃ 10~95%@40℃ (no condensation) Storage environment -20~70℃ 10~95%@40℃ (no condensation) OS supports WinXP, Win7/8/10

Product Features

1. Processor and chipset:

Adopts Intel G41 + ICH7R chipset, supports Intel Socket 775 CPU, including Pentium HT, Core2 Duo,and  Core2 Quad processors.

2. Expansion Capability:

Complies with PICMG1.0 bus specification, can expand 4 PCI and 8 ISA expansion slots (supports up to 12 PCI slots with matching baseboard).

Equipped with 2 1000MB RJ45 Ethernet ports, 2 RS232 serial ports (COM2 supports RS232/422/485 serial ports), 1 LPT parallel port, 8 USB2.0, 1 PS2 interface (supports PS2KB/MS).

It has 1 VGA interface, 1 IDE (supports UltraDMA/33/66/100MB/Sec), 4 SATA interfaces (maximum data transfer speed can reach 3GB/S, supports RAID0,1 disk array), and can be equipped with up to 4 SATA hard disks to meet large data storage requirements.

Audio can support 1MIC-in, 1Line-out.

3. Other features:

Adopts long card 1.0 specification + baseboard architecture.

256-level programmable watchdog function to ensure system stability and reliability.

The memory is 2 240-pin DDRIII slots, which can support up to 4GB.

The adapter chip is ITE8888.

Support ATX power management mode, support automatic power-on when AC is powered on.

Operating system compatibility: compatible with mainstream operating systems and embedded operating systems such as Windows®XP, Windows®XP Embedded, Windows®2000, Linux, and Win7/8/10.

4. Environmental adaptability:

The working environment temperature is – 20~60℃, humidity 10~95%@40℃ (no condensation).

The storage environment temperature is – 20~70℃, humidity 10~95%@40℃ (no condensation).

Application fields:

It is widely used in process control, industrial automation, inspection and testing, and other fields. With its powerful performance, rich expansion interfaces, and good environmental adaptability, this motherboard can meet the various needs of industrial computers in these fields. For example, industrial automation production lines can be used to control equipment operation, data collection, transmission, etc.; inspection and testing equipment can realize the processing and analysis of test data and other functions. At the same time, its long supply cycle and high cost-effectiveness also guarantee the long-term and stable use of related industries.
