Product Introduction：

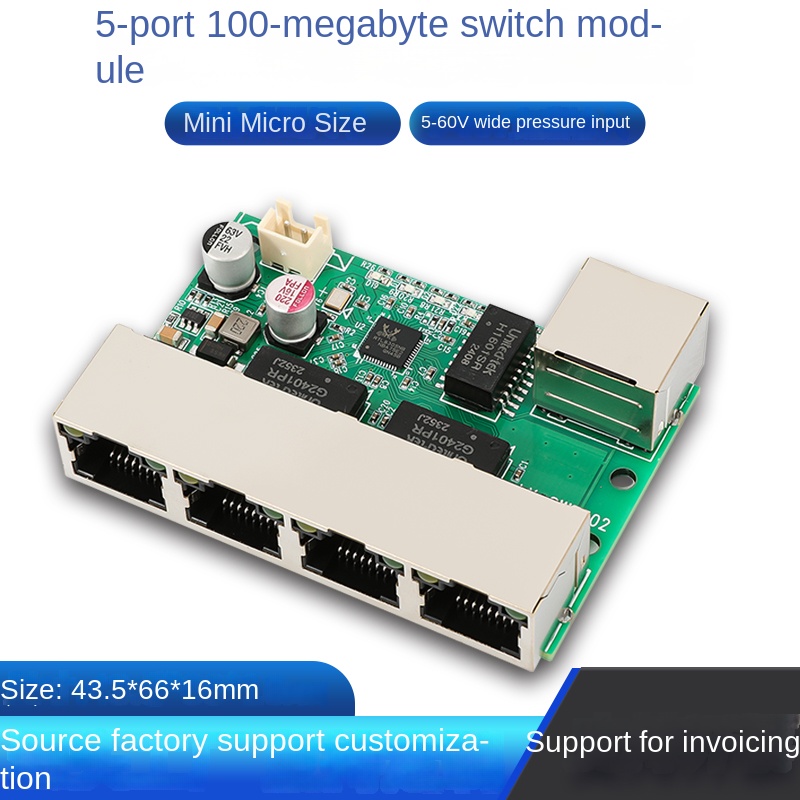

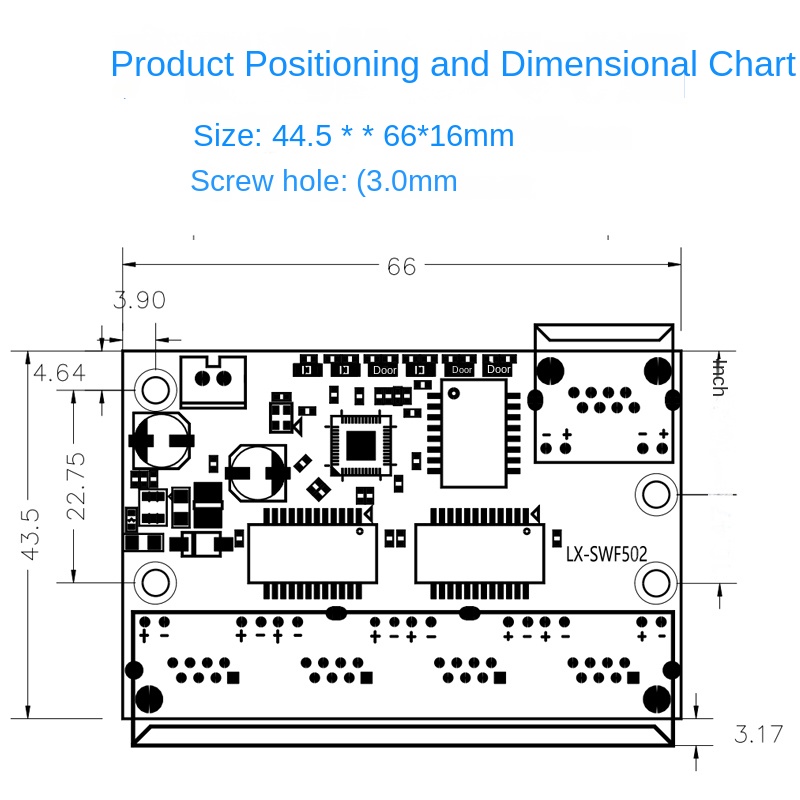

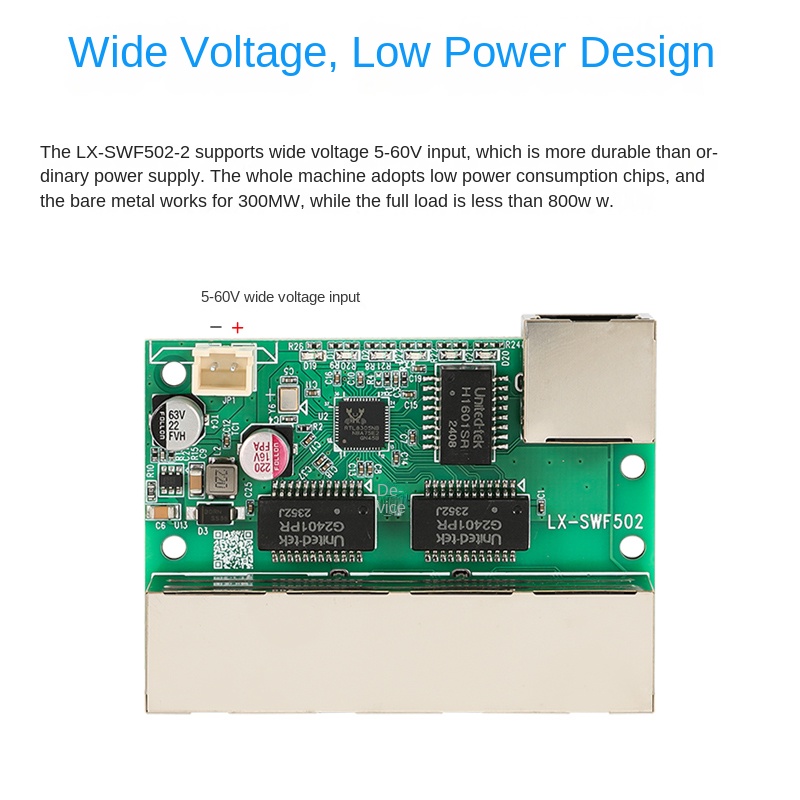

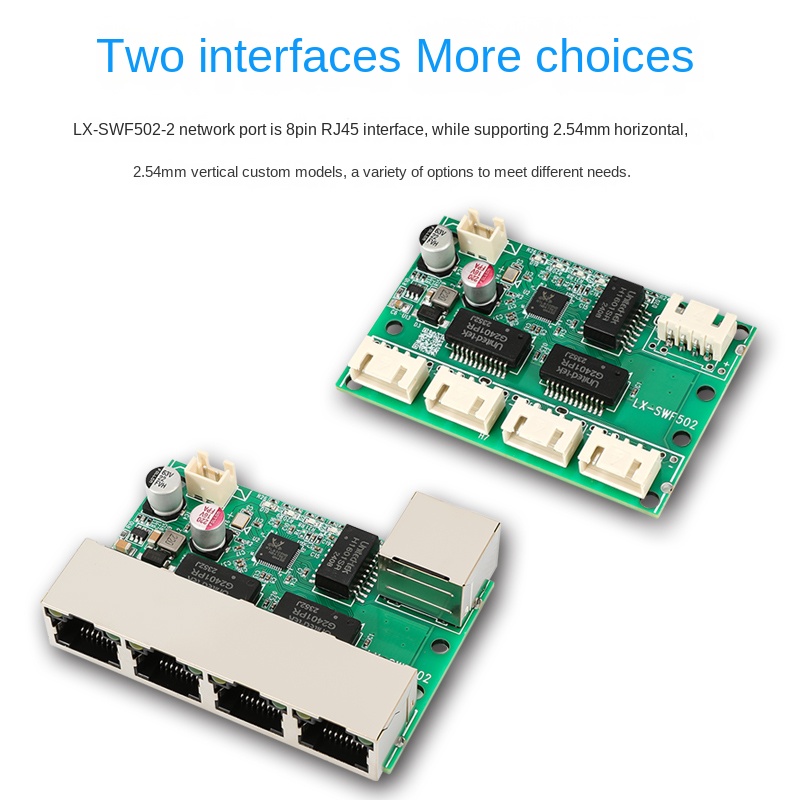

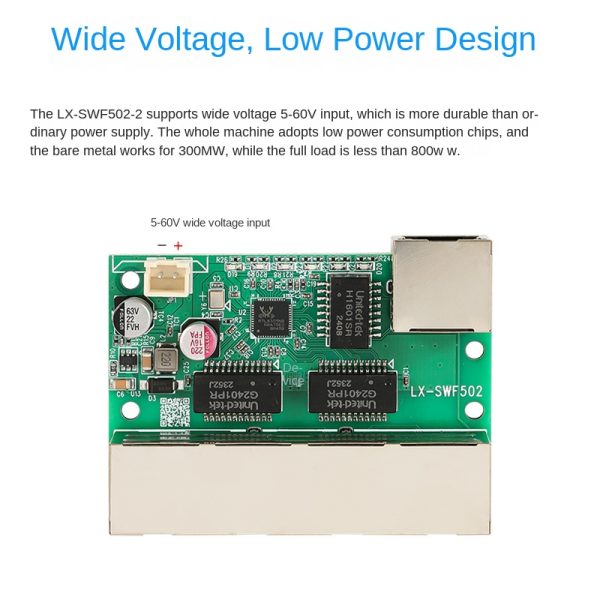

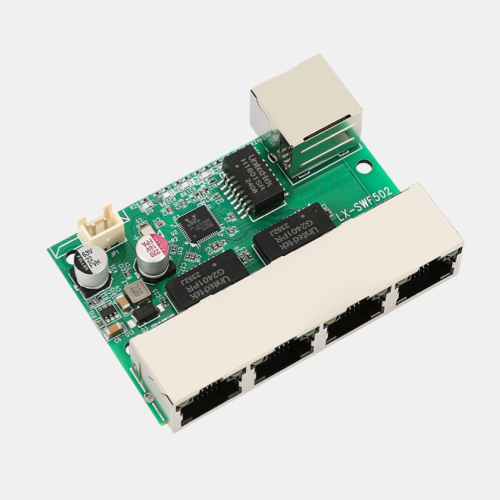

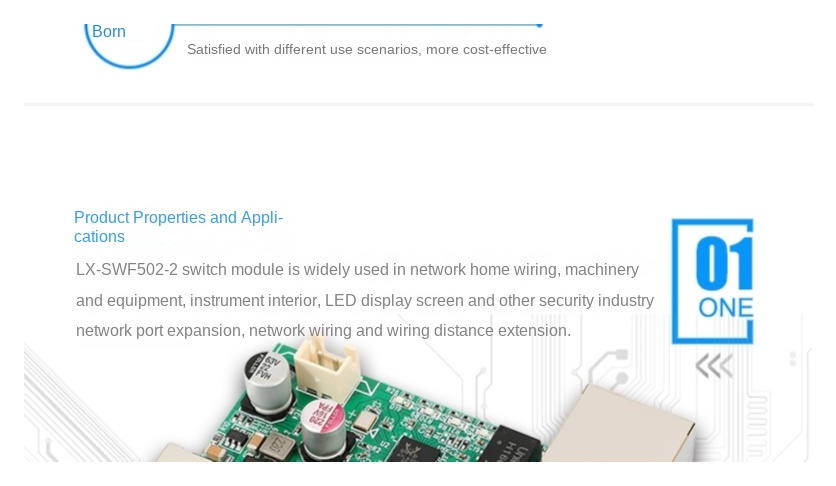

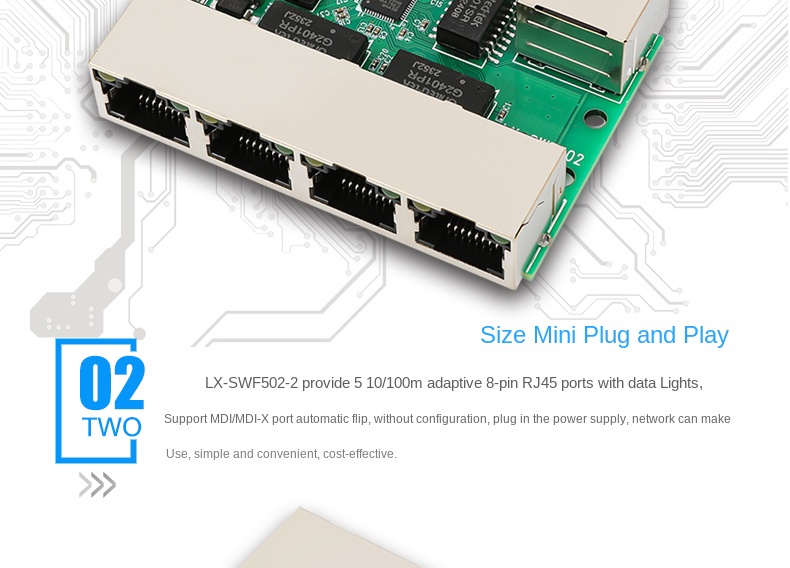

LX-SWF502-2 is a 5-port switch module widely used in network home wiring, equipment and instrument interior, LED display, and other security industrial network port expansion and network wiring extension. It complies with IEEE 802.3 and other standards, supports MDI/MDI-X port automatic flipping, no configuration required, plugs in and connects to the network and is, and is simple, convenient, and cost-effective. It has 5 10/100M adaptive RJ45 ports, and allorts can be used as UP-LINK ports, using store-and-forward mode. The filtering and forwarding rates have corresponding standards according to Ethernet and Fast Ethernet, and the power consumption is 300mw@12VDC when unloaded and 800mw@12VDC when loaded. There are requirements for network media, working temperature – 20°C~50°C, storage temperature – 40°C~80°C, and humidity conditions are also specified. The backplane bandwidth is 1G, with power light and data light indication, the product size is 6643.516mm, the applied power supply is DC5 – 60V/1A, and the input method is pin-type 2P terminal block.

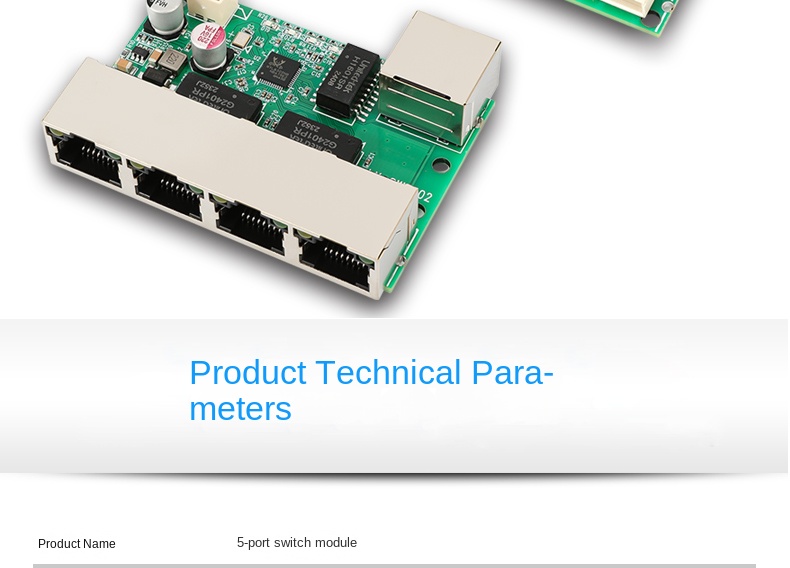

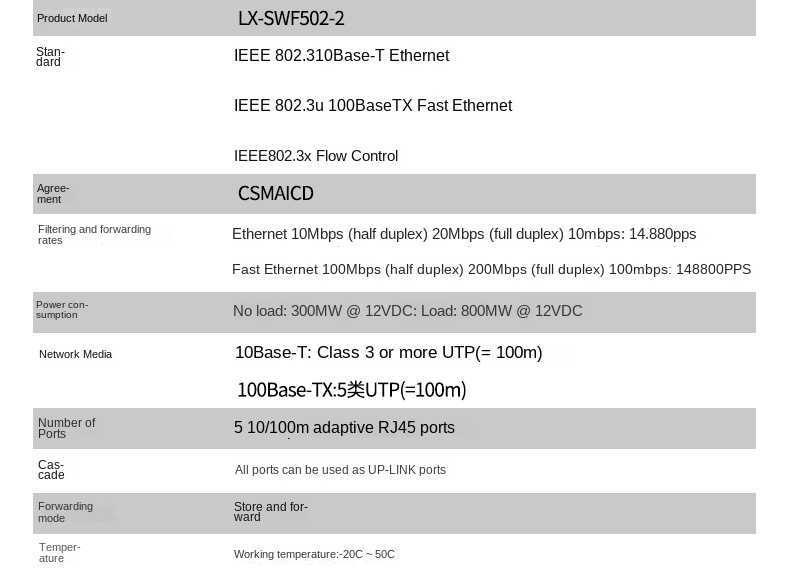

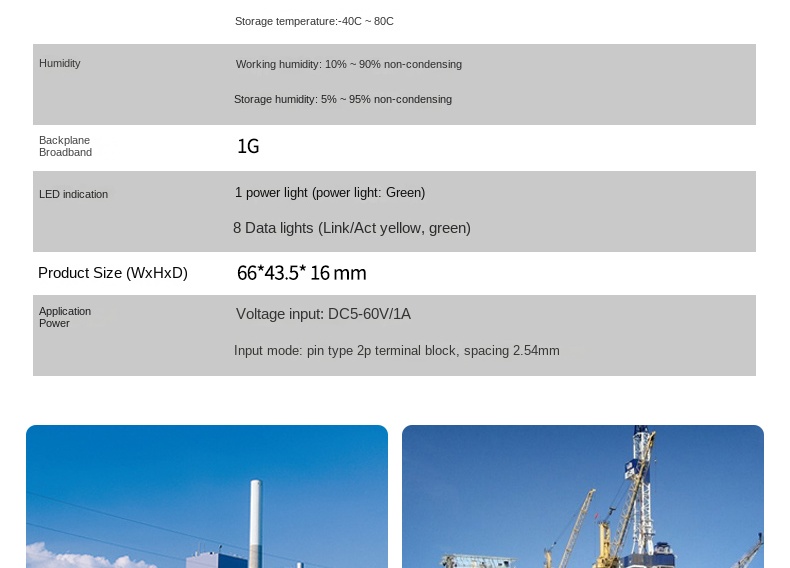

Product Details：
